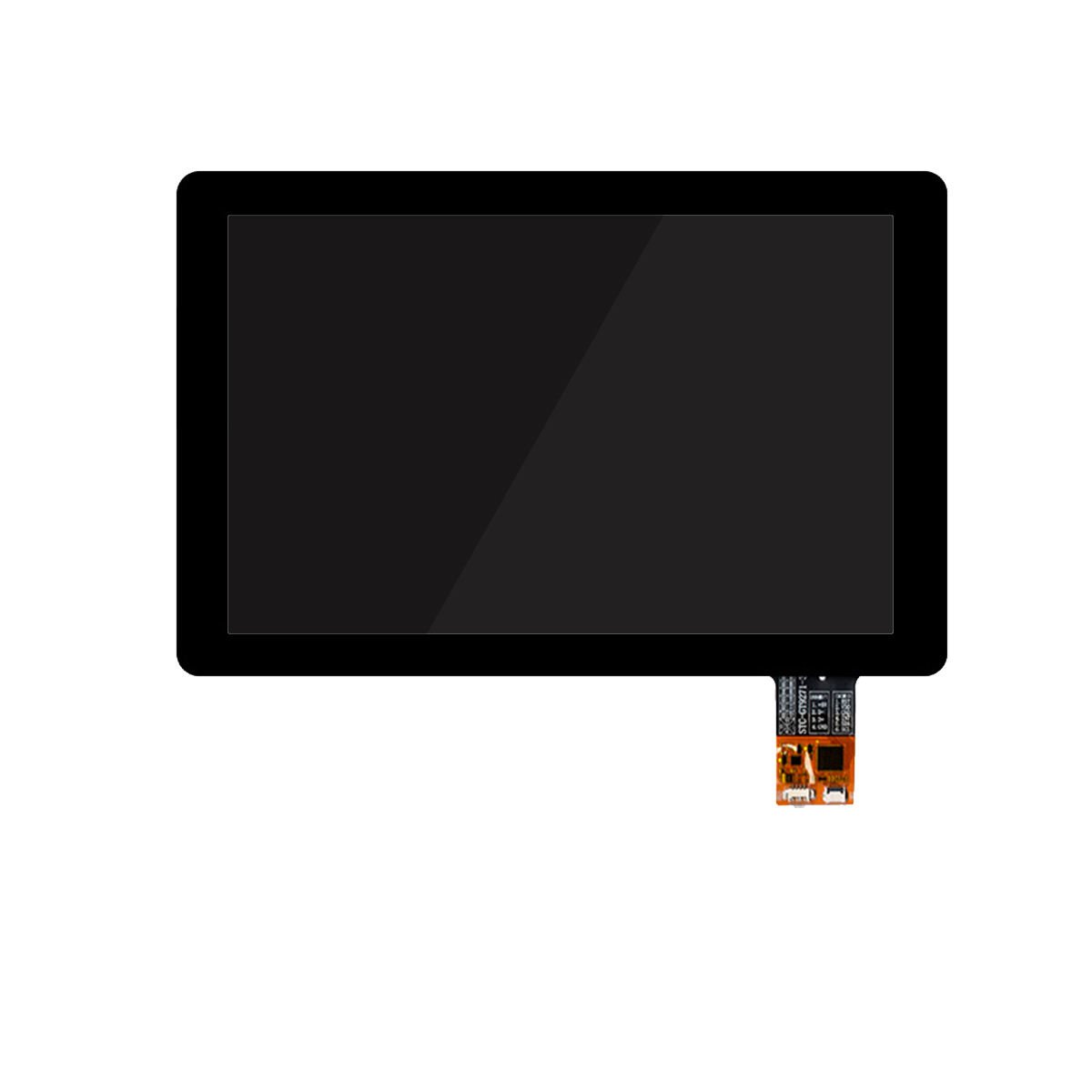

OEM 10.1 Inch LCD Module with 10 inch display and 10.1 inch lcd display 10.1 Inch Monochrome Panel 10 Inch LCD 250mm Touch Screen Manufacturer

Industry-specific attributes

Type	IPS
Display Size	10.1inch

Other attributes

Packaging and delivery

General Specifications
No.	Item	Specification
1	LCD size	10.1 inch(Diagonal)
2	Driver element	a-Si TFT active matrix
3	Resolution	1280 × 3(RGB) × 800
4	Display mode	Normally Black, Transmissive
5	Dot pitch	0.0565(W) × 0.1695(H) mm
6	Active area	216.96(W) × 135.60(H) mm

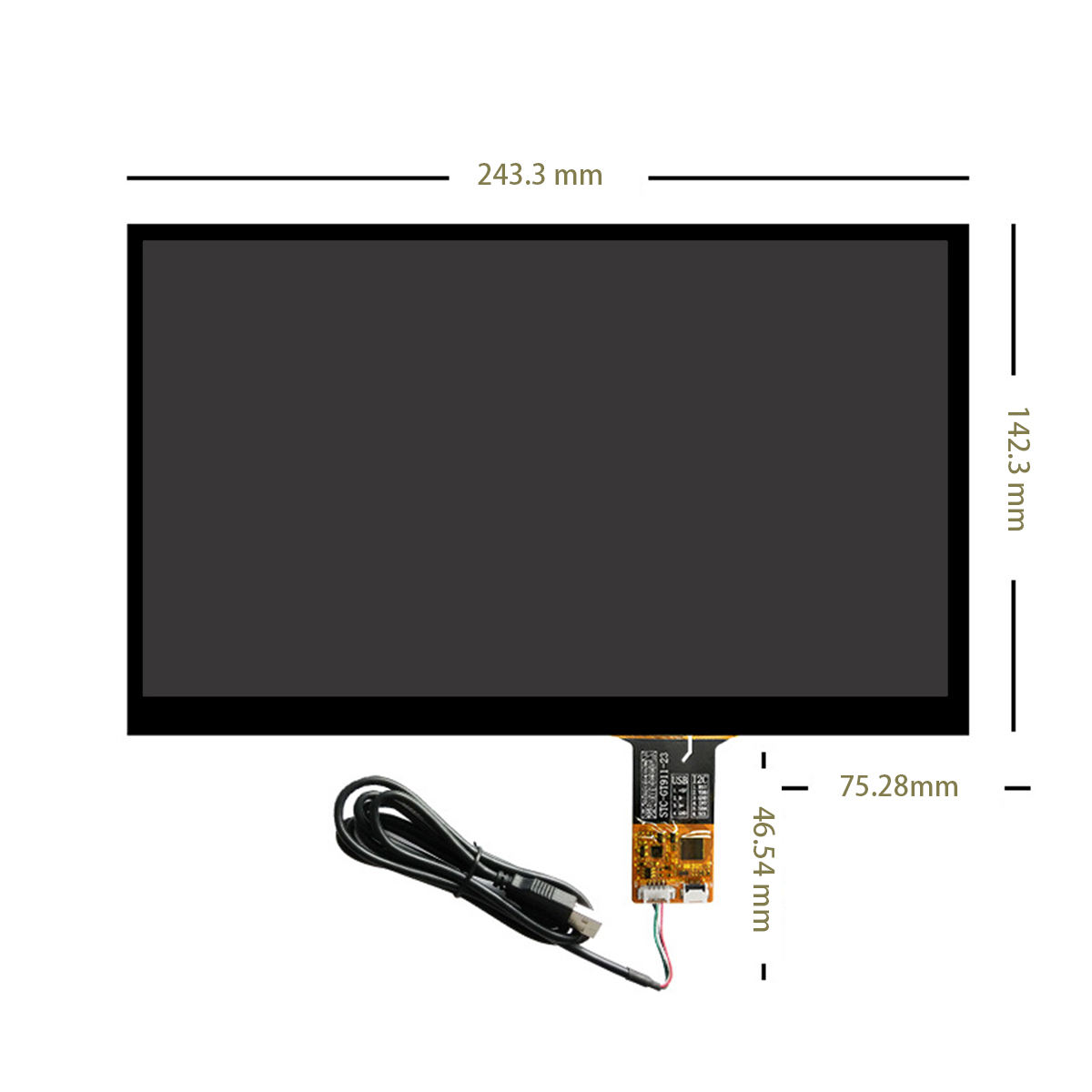

7	Panel size	223.95(W) ×144.24(H) ×1.07(D) mm
8	Surface treatment	HC
9	Color arrangement	RGB-stripe
10	Interface	LVDS
11	View direction(Gray Inversion)	free
12	Panel power consumption	0.307W(typ)
13	Weight	80g(Typ)
14	inversion	column
15	IC	EK79202

Pin Assignment
Pin No.	Symbol	I/O	Function	Remark
1	NC	---	No connection
2	VDD	P	Power Supply
3	VDD	P	Power Supply
4	NC	---	Only for INX test
5	NC	---	Only for INX test
6	NC	---	Only for INX test
7	GND	P	Ground
8	Rxin0-	I	-LVDS Differential Data Input	R0-R5, G0
9	Rxin0+	I	+LVDS Differential Data Input	R0-R5, G0
10	GND	P	Ground
11	Rxin1-	I	-LVDS Differential Data Input	G1~G5, B0,B1
12	Rxin1+	I	+LVDS Differential Data Input	G1~G5, B0,B1
13	GND	P	Ground
14	Rxin2-	I	-LVDS Differential Data Input	B2-B5,HS,VS, DE
15	Rxin2+	I	+LVDS Differential Data Input	B2-B5,HS,VS, DE
16	GND	P	Ground
17	RxCLK-	I	-LVDS Differential Clock Input	LVDS CLK
18	RxCLK+	I	+LVDS Differential Clock Input	LVDS CLK
19	GND	P	Ground
20	Rxin3-	I	-LVDS Differential Data Input	R6, R7, G6, G7, B6, B7
21	Rxin3+	I	+LVDS Differential Data Input	R6, R7, G6, G7, B6, B7
22	GND	P	Ground
23	NC	---	No connection
24	NC	---	No connection
25	GND	P	Ground
26	NC	---	No connection
27	NC	---	No connection
28	NC	---	No connection
29	AVDD	P	Power for Analog Circuit
30	GND	P	Ground
31	LED-	P	LED Cathode
32	LED-	P	LED Cathode
33	NC	---	No connection
34	NC	---	No connection
35	VGL	P	Gate OFF Voltage
36	NC	---	No connection
37	NC	---	No connection
38	VGH	P	Gate ON Voltage
39	LED+	P	LED Anode
40	LED+	P	LED Anode
