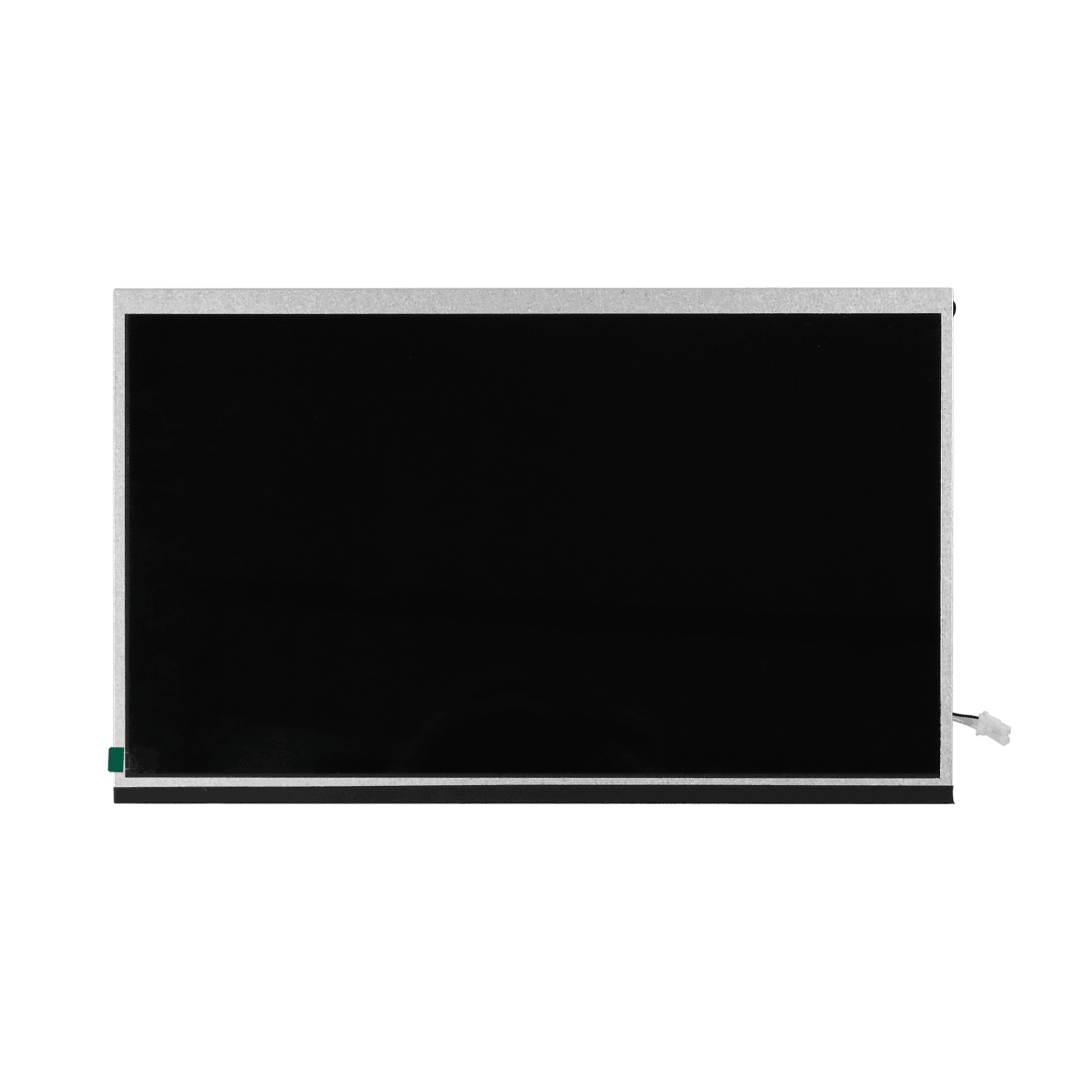

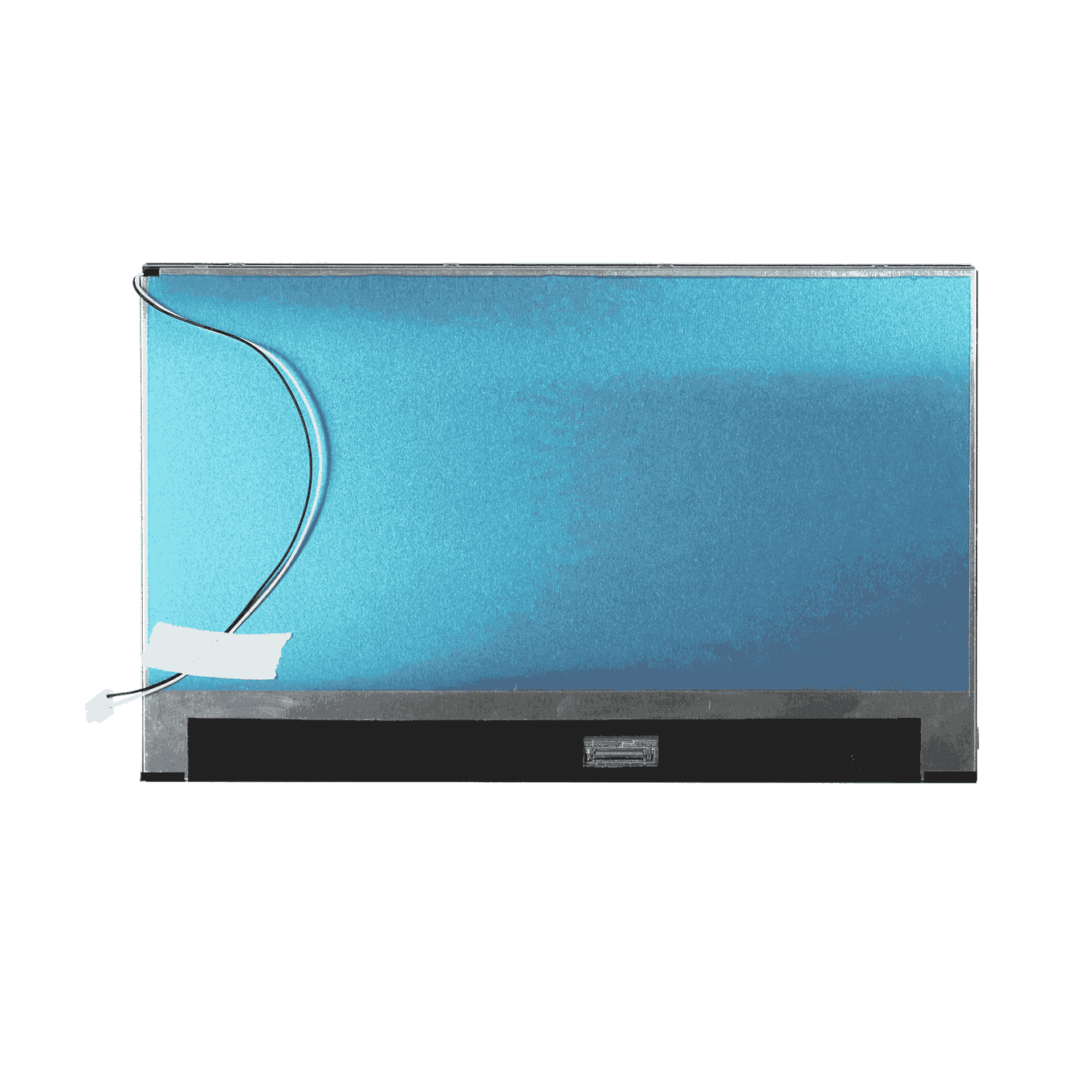

11.6 Inch Lcd Display Touch Screen
Model Number :
YY116IAD61FHA00B1Display Size :
11.6 inch (Diagonal)Brightness :
1000cd/m2Resolution :
1920*1080Thickness :
6.1 MMDriver Element :
a-Si TFT active matrixWarranty :
12 MonthsManufacturer :
CloudSense OptiTech|
Pin No.
|
Symbol
|
Description Remark
|
|
1
|
CABC-EN
|
CABC-EN
|
|
2
|
GND
|
Power Ground
|
|
3
|
LANE1-N
|
eDP RX channel 1 negative
|
|
4
|
LANE1-P
|
eDP RX channel 1 positive
|
|
5
|
GND
|
Power Ground
|
|
6
|
LANEO-N
|
eDP RX channel 0negative
|
|
7
|
LANEO-P
|
eDP RX channel 0positive
|
|
8
|
GND
|
Power Ground
|
|
9
|
AUX-CH-P
|
eDP AUX CH positive
|
|
10
|
AUX-CH-N
|
eDP AUX CH negative
|
|
11
|
GND
|
Power Ground
|
|
12
|
LDC-VCC
|
3.3V
|
|
13
|
LCD-VCC
|
3.3V
|
|
14
|
LCD-TE ST
|
Panel self test enable
|
|
15
|
GND
|
Power Ground
|
|
16
|
GND
|
Power Ground
|
|
17
|
HPD
|
Hot plug detect output
|
|
18
|
BL-GND
|
Power Ground
|
|
19
|
BL-GND
|
Power Ground
|
|
20
|
BL-GND
|
Power Ground
|
|
21
|
BL-GND
|
Power Ground
|
|
22
|
BL-ENA BLE
|
BL-ENABLE
|
|
23
|
BL-PW M
|
Reset low active
|
|
24
|
MSCL
|
FOR DEBUG
|
|
25
|
MSDA
|
FOR DEBUG
|
|
26
|
BL-POW ER
|
BL-POWER
|
|
27
|
BL-POW ER
|
BL-POWER
|
|
28
|
BL-POW ER
|
BL-POWER
|
|
29
|
BL-POW ER
|
BL-POWER
|
|
30
|
NC
|
NC
|

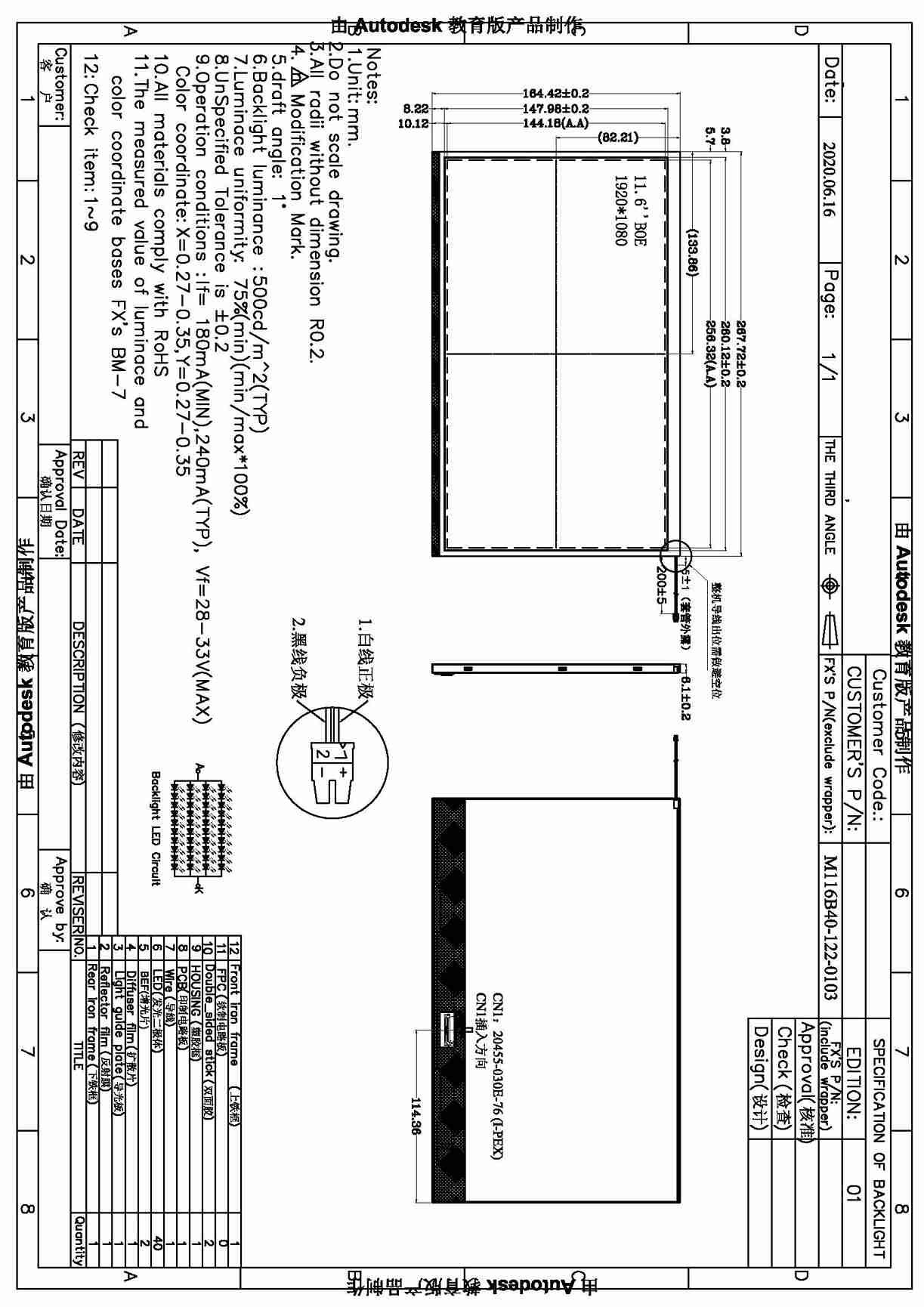

Mechanical Drawing
