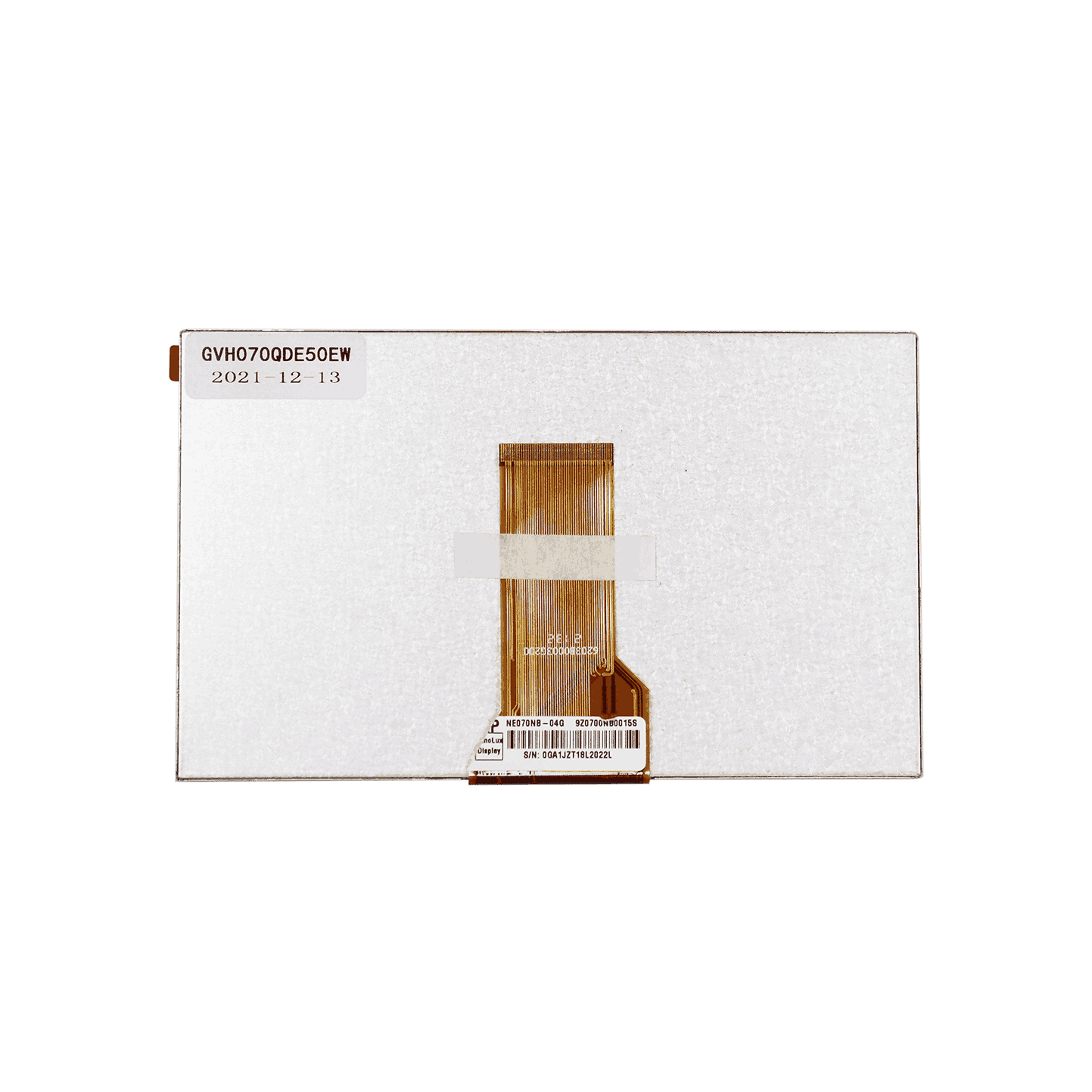

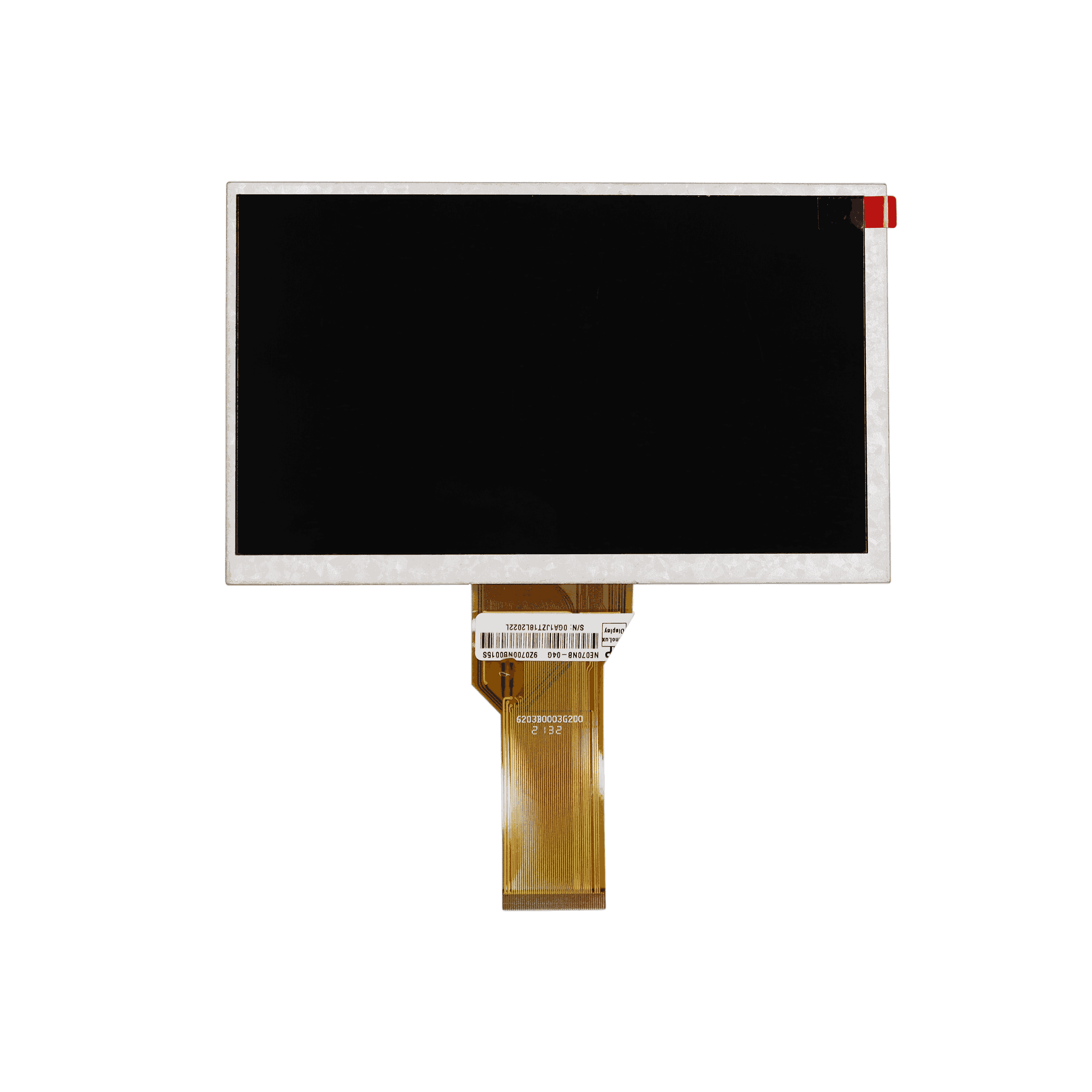

7 Inch High Definition Touch Screen Lcd Module

7.0" Touch Screen Lcd Module

Model Number :
YY070TNF50WV500I3
Display Size :
7 inch (Diagonal)
Brightness :
500cd/m2
Resolution :
800*480
Thickness :
5.0 MM
Driver Element :
a-Si TFT active matrix
Warranty :
12 Months
Manufacturer :
CloudSense OptiTech

Inquire Now

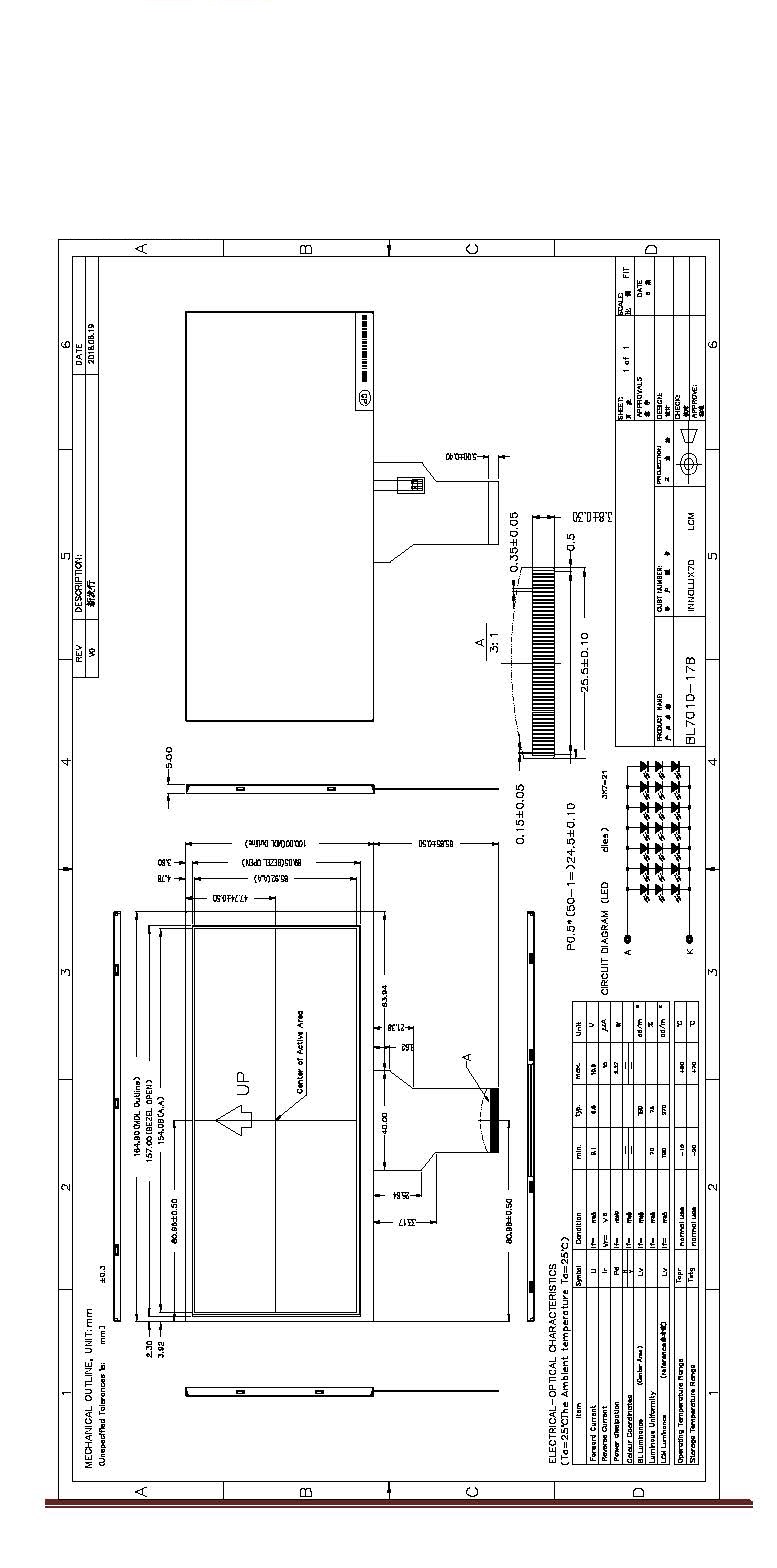

Product Details

Pin Assignment

I: input, O: output, P:Power

Note 1: DE/SYNC mode select Normally pull high.

When select DE mode, MODE="1", VS and HS must pull high. When select SYNC mode, MODE= "0", DE must be grounded.

Note 2: When input 18 bits RGB data, the two low bits of R.Gand B data must be grounded.

Note 3: Data shall be latched atthe faling edge of DCLK,

Note 4: Selection of scanning mode

Note 5: Definition of scanning direction. Refer to the figure as below

Note 6: Global reset pin. Active lowto enter reset state. Suggest to connect with an RC reset circuit for stability. Normally pul high.

Note 7: Dithering function enable control, normally pull high. When DITHB="1",Disable internal dithering function, When DITHB="0",Enable internal dithering function,

Note 8: Reserve for LED power input.

Pin No.	Symbol	I/O	Function	Remark
1	VLED+	P	Power For Led Backlinght(Anode)
2	VLED+	P	Power For Led Backlinght(Anode)
3	VLED-	P	Power For Led Backlinght(Anode)
4	VLED-	P	Power For Led Backlinght(Anode)
5	GND	P	Power Ground
6	Vcom	\|	Common Voltage
7	DVDD	P	Power Tor Digital Circult
8	MODE	\|	De/Sync Mode Select	Note1
9	DE	\|	Datainput Enable
10	VS	\|	Vertical Sync Input
11	HS	\|	Horizontal Sync Input
12	B7	\|	Blue Data(MSB)
13	B6	\|	Blue Data
14	B5	\|	Blue Data
15	B4	\|	Blue Data
16	B3	\|	Blue Data
17	B2	\|	Blue Data
18	B1	\|	Blue Data	Note 2
19	B0	\|	Blue Data(LSB)	Note 3
20	G7	\|	Green Data(MSB)
21	G6	\|	Green Data
22	G5	\|	Green Data
23	G4	\|	Green Data
24	G3	\|	Green Data
25	G2	\|	Green Data
26	G1	\|	Green Data	Note 2
27	G0	\|	Green Data(LSB)	Note 2
28	R7	\|	Red Data(MSB)
29	R6	\|	Red Data
30	R5	\|	Red Data
31	R4	\|	Red Data
32	R3	\|	Red Data
33	R2	\|	Red Data
34	R1	\|	Red Data	Note 2
35	R0	\|	Red Data(LSB)	Note 2
36	GND	P	Power Ground
37	DCLK	\|	Sample Clock	Note 3
38	GND	P	Power Ground
39	U/R	\|	Left / Right Selection	Note 3, 4
40	U/D	\|	Up/Down Selection	Note 3, 4
41	VGH	P	Gate On Voltage
42	VGL	P	Gate Of F Voltage
43	AVDD	P	Power For Analog Circuit
44	RESET	\|	Global Reset Pin.	Note 6
45	NC	-	No Connection
46	Vcou	\|	Common Voltage
47	DITHB	\|	Dithering Function	Note 7
48	GND	P	Power Ground
49	NC	-	No Connection
50	NC	-	No Connection
