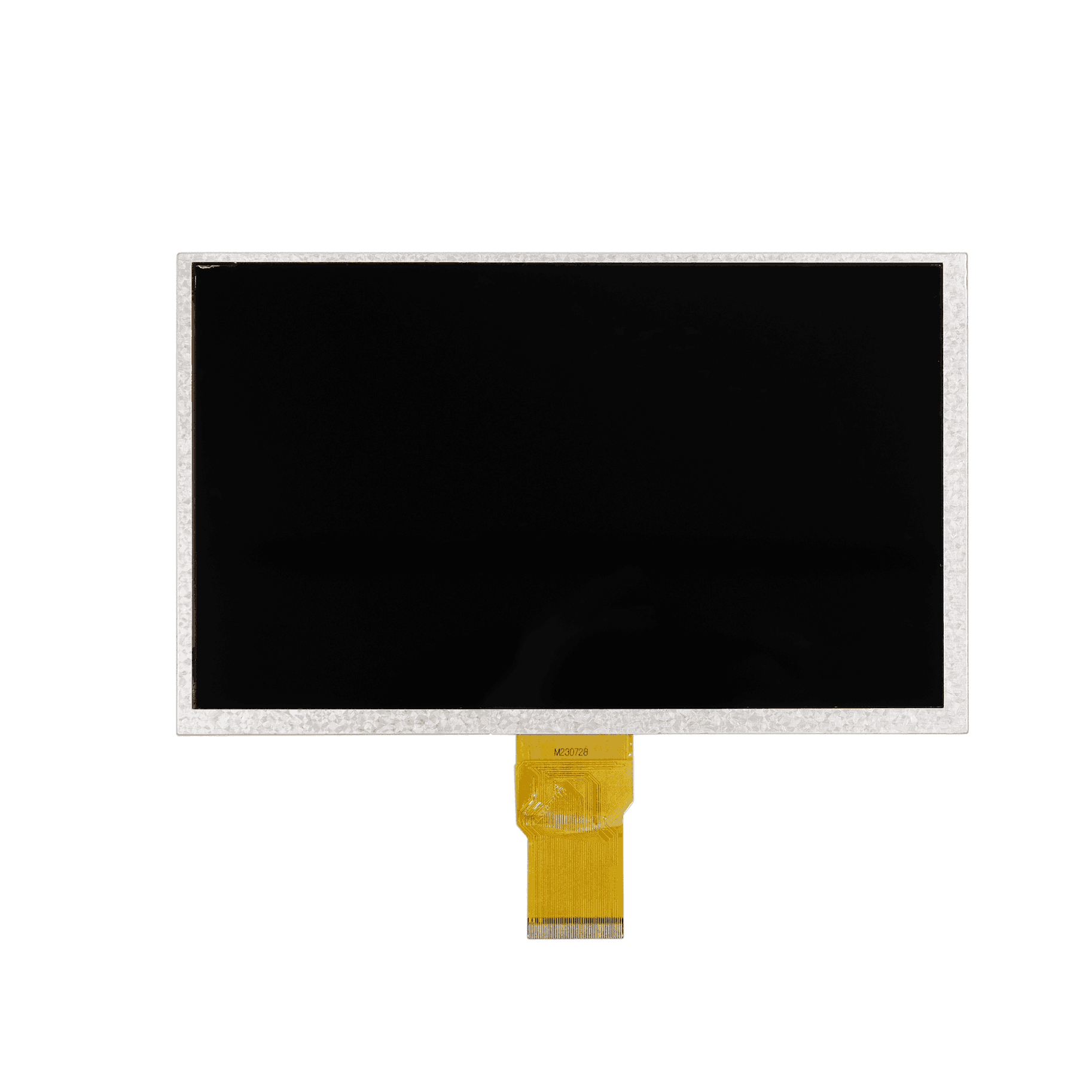

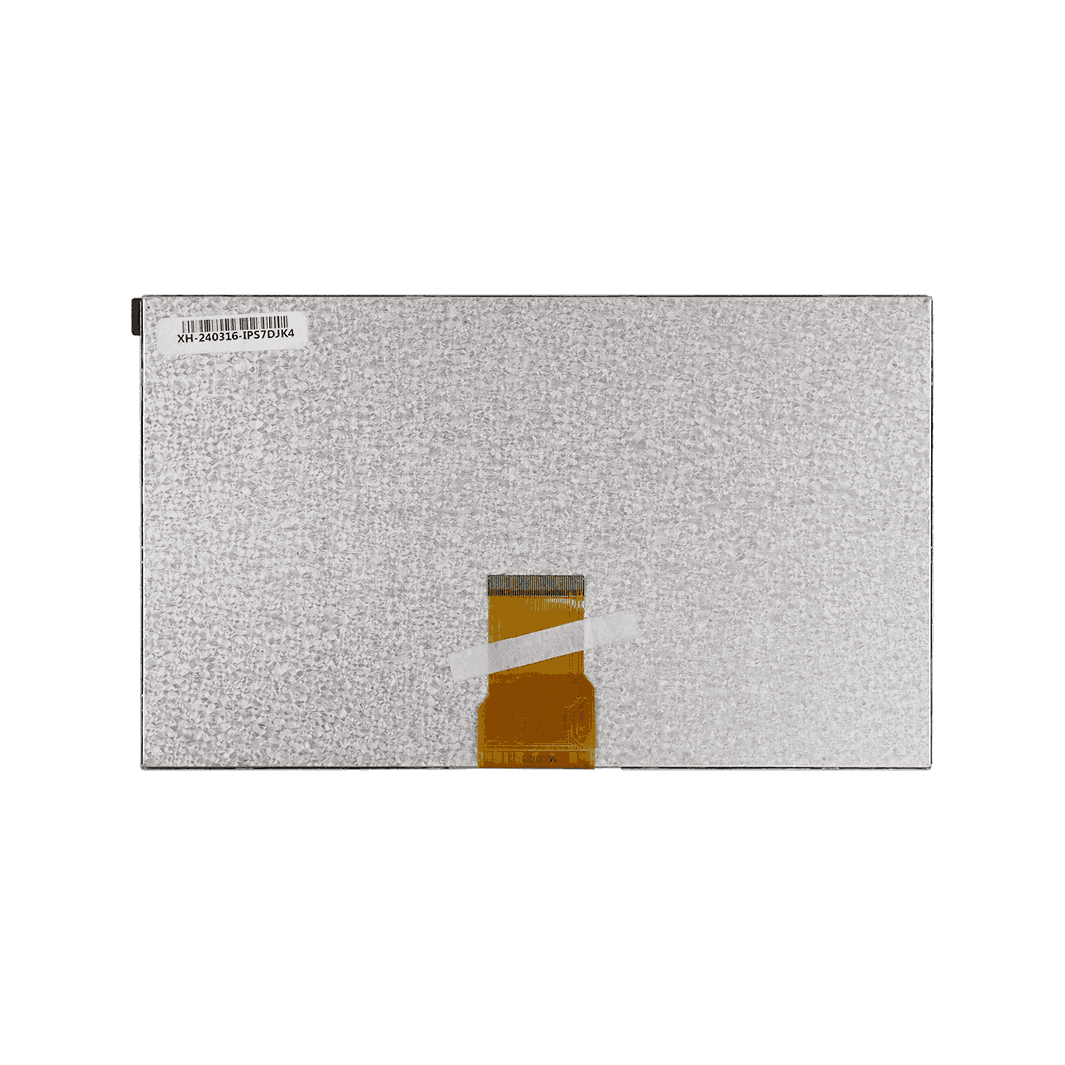

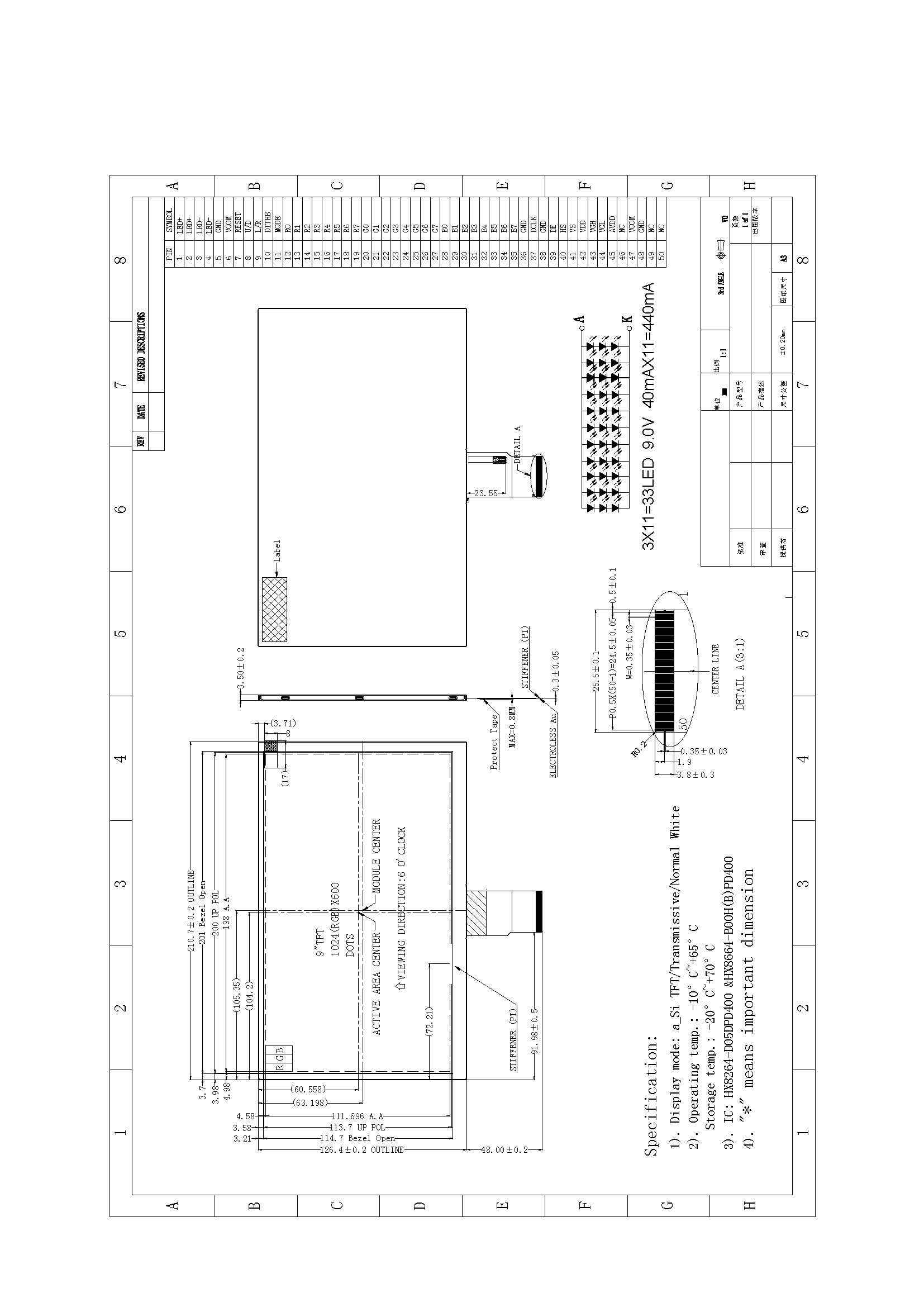

9 Inch Custom Touch Screen Lcd Module

9 Inch Touch Screen Lcd Module

Pin Assignment

I: input,0: output, P: Power Note 1: DE/SYNC mode select. Normally pull high.

When select DE mode, MODE=”1”, VS and HS must pull high.

When select SYNC mode, MODE= ”0”, DE must be grounded.

Noto 2: Whon input 18 bits RGB data, the two low bits of R,G and B data must be grounded.

Note 3: Data shall bo latched at the falling|edge of DCLK.

Note 4: Selection of scanning mode

Note 5: Dofinition of scanning direction. Refor to the figure as bolow:

Note 6: Global reset pin. Active low to enter reset state. Suggest to connect with an RC reset circuit for stability. Normally pull high.

Note 7: Dithering function enable control, normally pull high.

When DITHB=”1”,Disable internal dithering function,

When DITHB=”0”,Enable internal dithering function,

Note 8: Reserve for LED power input.

Pin No.	Symbol	I/O	Function	Remark
1	LED+	P	Power for LED backlight (Anode)	Note 8
2	LED+	P	Power for LED backlight(Anode)	Note 8
3	LED-	P	Powor for LED backlight(Cathode)	Note 8
4	LED-	P	Power for LED backlight(Cathode)	Note 8
5	GND	P	Power ground
6	VCOM	I	Common voltage
7	DVDD	P	Power for Digital Circuit
8	MODE	I	DE/SYNC mode seloct	Note 1
9	DE	I	Data Input Enablo
10	VS	I	Vortical sync input
11	HS	I	Horizontal sync input
12	B7	I	Blue data(MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data	Note 2
19	B0	I	Blue data(LSB)	Note 2
20	G7	I	Green data(MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data(LSB)	Note 2
28	R7	I	Red data(MSB)	Note 2
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data	Note 2
35	R0	I	Red data(LSB)	Note 2
36	GND	P	Power Ground
37	DCLK	I	Clock input	Note 3
38	GND	P	Power Ground
39	L/R	I	Left / right selection	Note 4,5
40	U/D	I	Up/down seloction	Note 4,5
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin.	Note 6
45	NC	-	No connection
46	VCOM	I	Common Voltage	Note 7
47	DITHB	I	Dithering function
48	GND	P	Powor Ground
49	NC	-	No connection
50	NC	-	No connection
