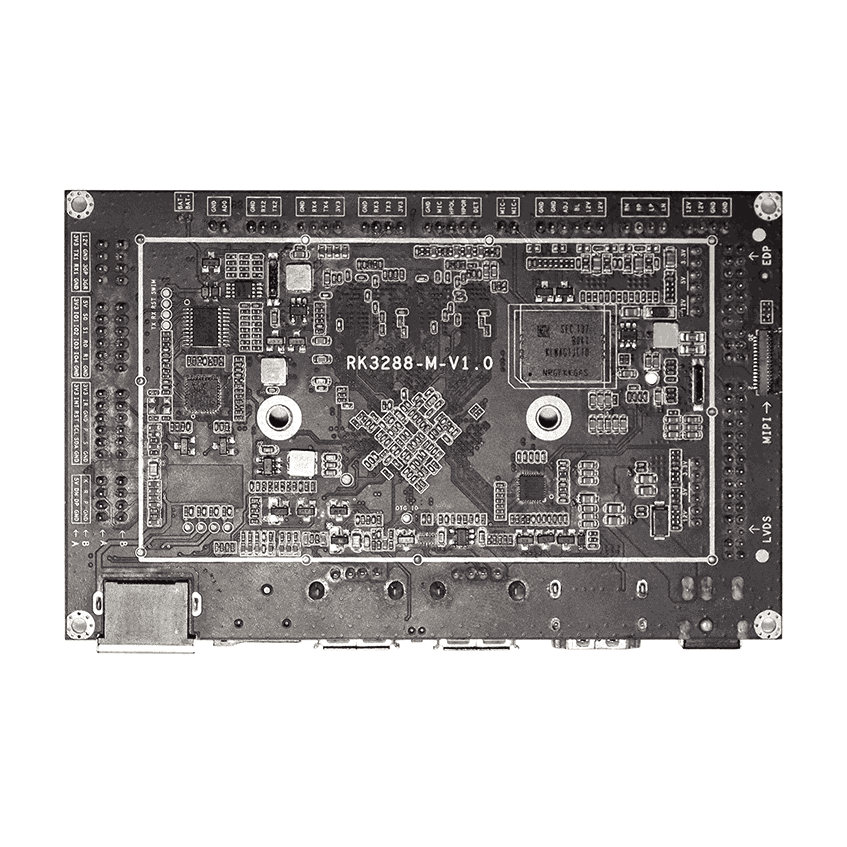

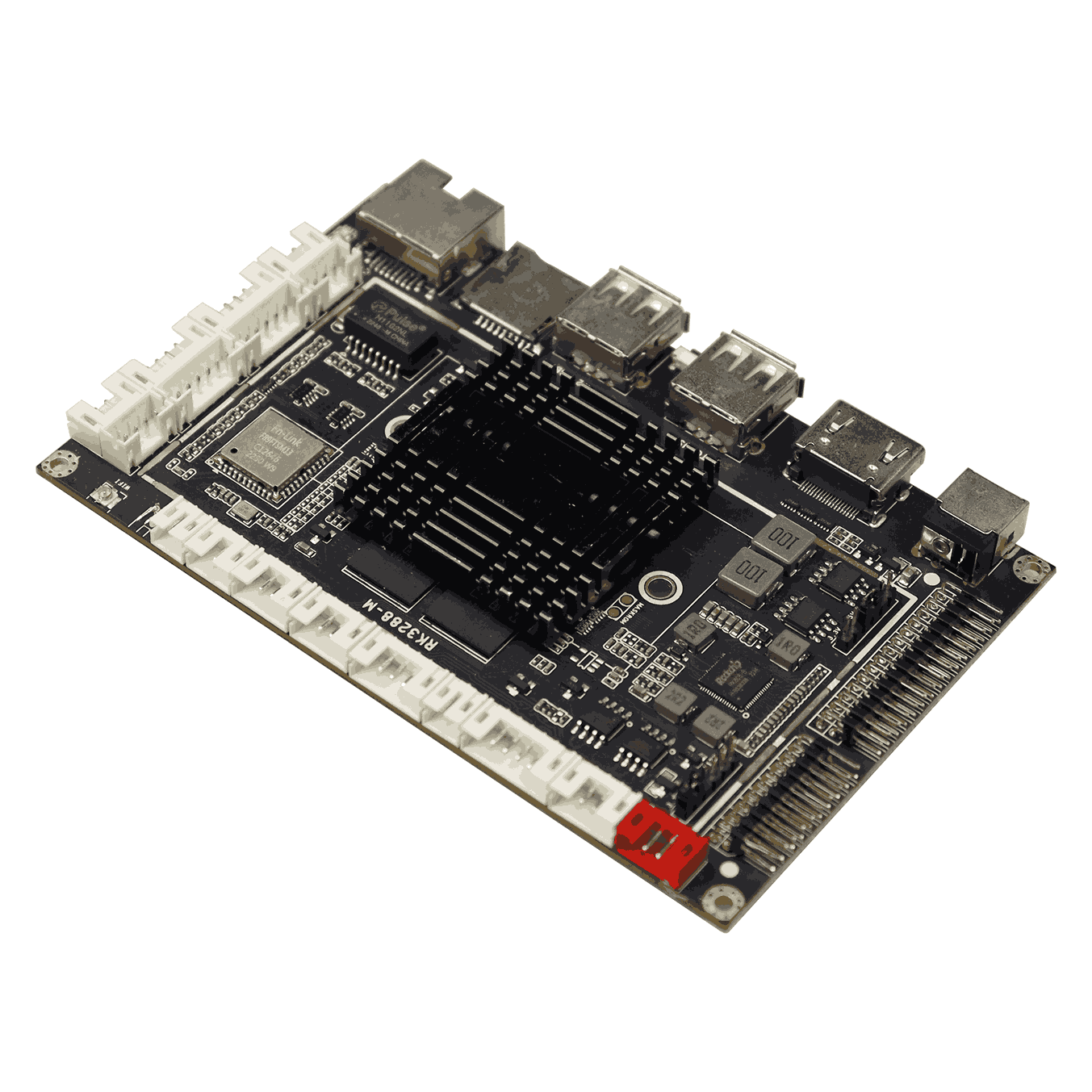

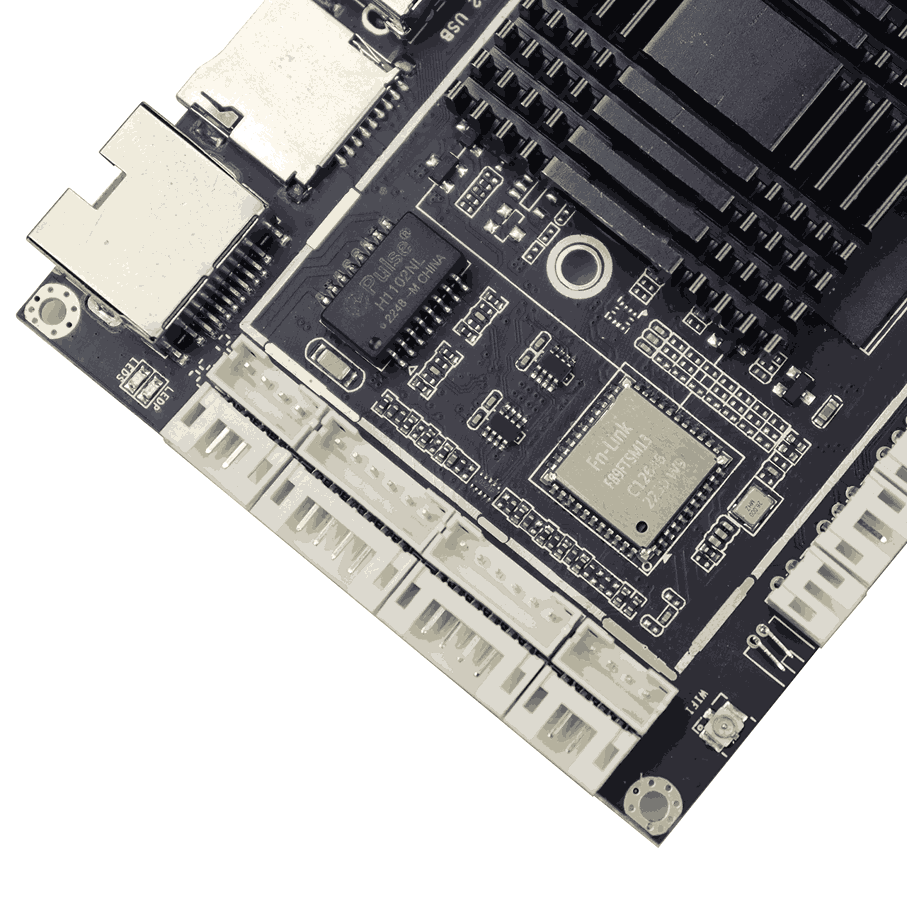

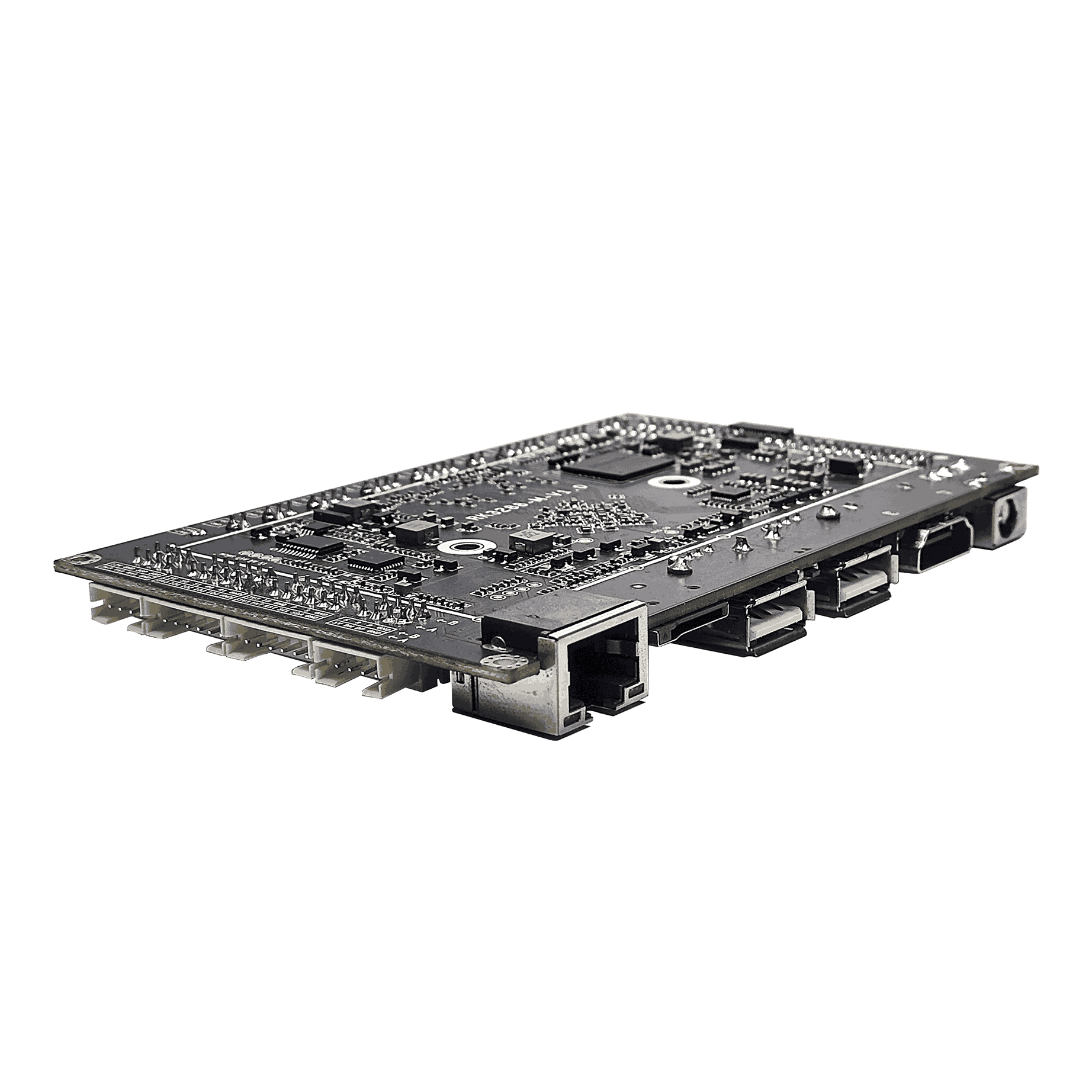

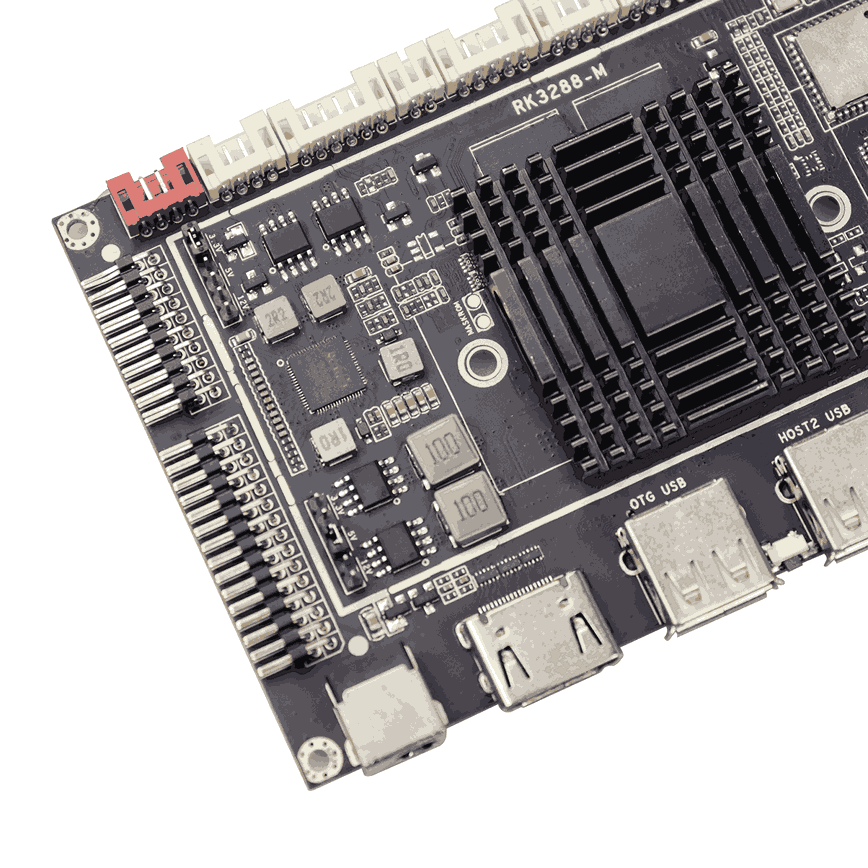

LCD PCBA Driver Control Board
Model Number :
RK3288-MWarranty :
12 MonthsManufacturer :
CloudSense OptiTechCPU :
Rockchip
|
CPU
|
Rockchip RK3288 (28nm HKMG process)
ARM Cortex-A17 quad core 32-bit processor, running at 1.8GHz |
|
GPU
|
Mail-T764 GPU MP4 quad core GPU
Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, DX11 Support AFBC (frame buffer compression) |
|
Memory
|
DDR3/LPDDR3 2G (Up to 4G)
|
|
built-in storage capacity
|
eMMC 16GB (8G/32G/64G/128G optional)
TF Card Extension (can be used to extend SSDs) |
|
Networking
|
Support RJ45 100M network interface and Ethernet
Support 2.4G WiFi and Wi Fi 802.11b/g/n protocol Support Bluetooth function, V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 (optional) |
|
image rotation
|
Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation.
Support gravity sensing automatic screen rotation function (optional) |
|

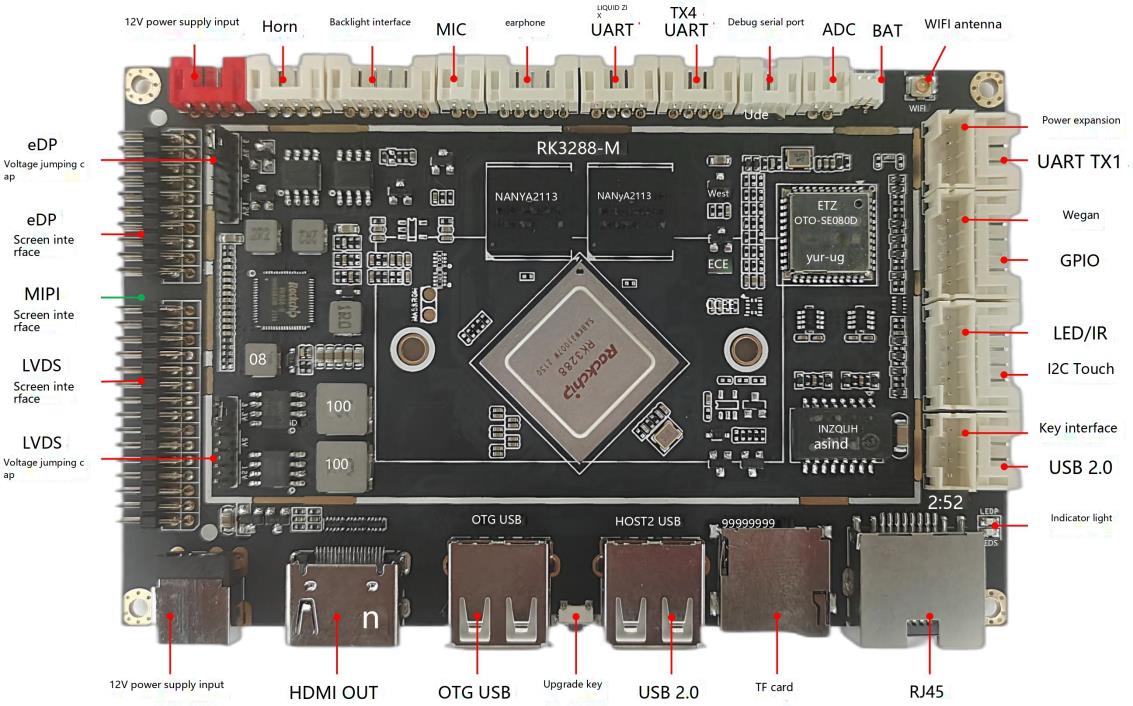

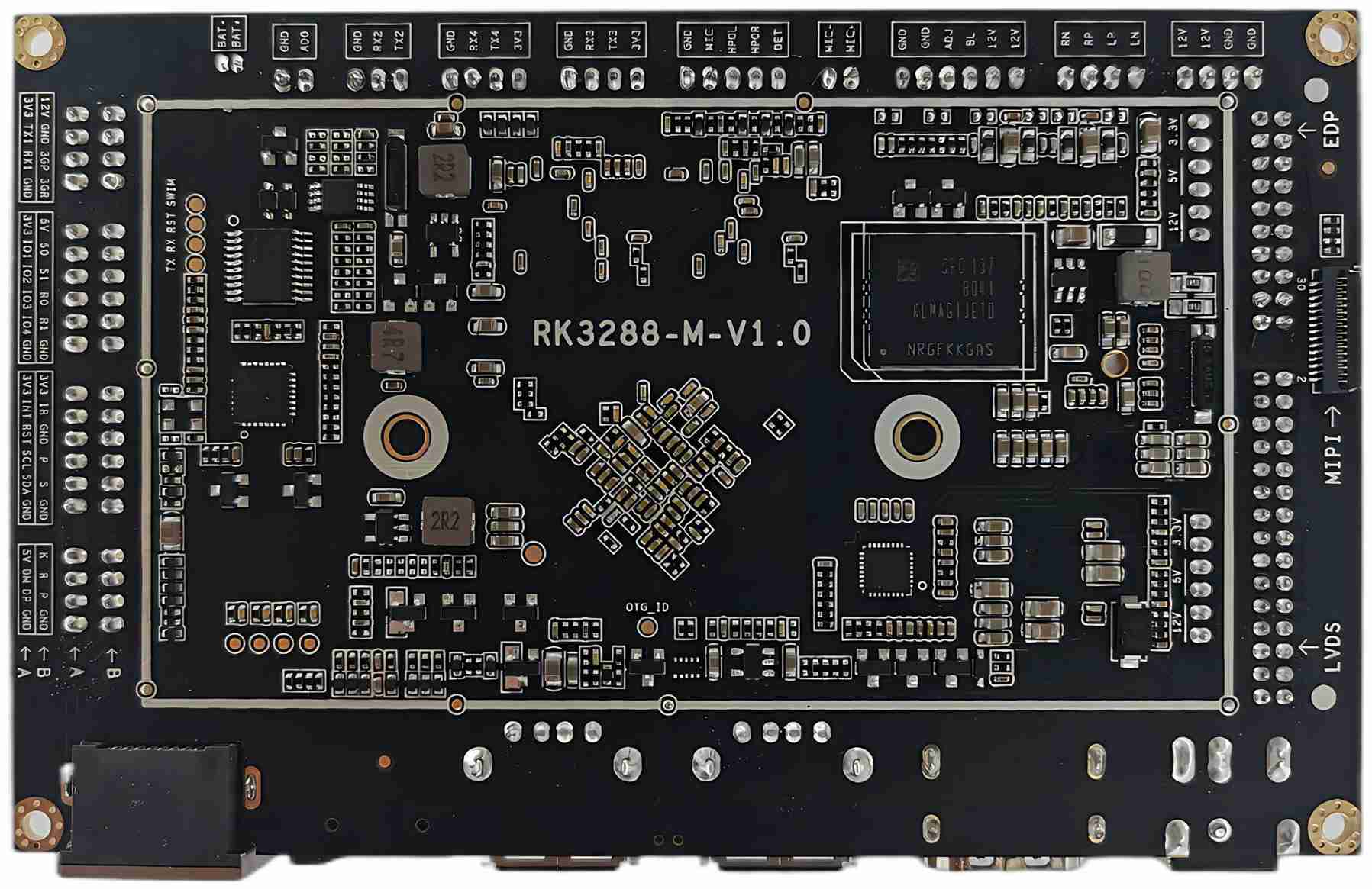

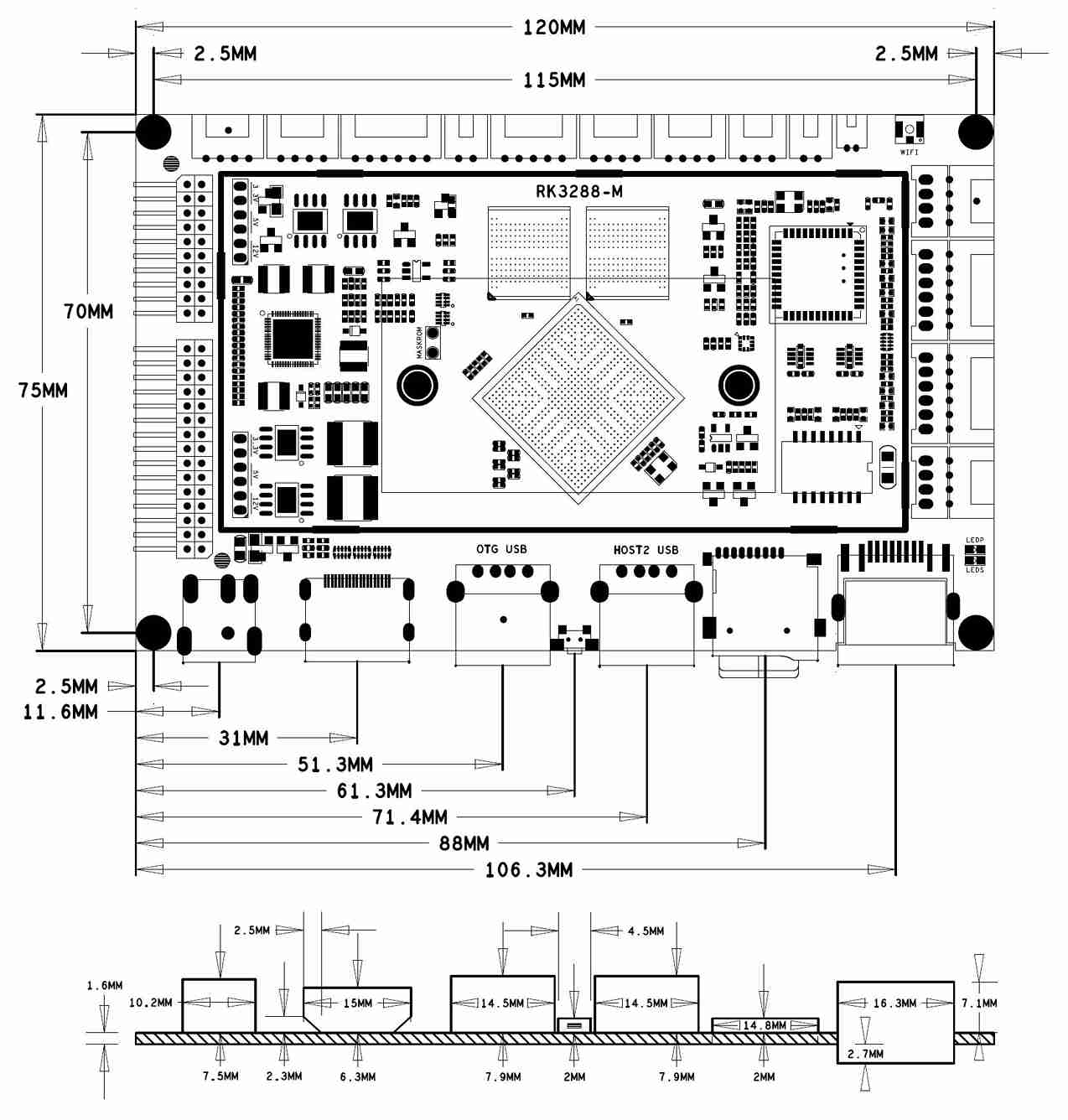

display interface
|
1 * eDP interface (eDP1.3, 4lanes with 10.8Gbps), supporting 3.3V/5V/12V power supply
1 * LVDS interface (single/dual, 6-bit/8-bit), supporting 7 "- 108" display, up to 1080P 60Hz output, supporting 3.3V/5V/12V power supply 1 * HDMI 2.0, up to 4K 60Hz output 1 * MIPI screen interface, up to 1080P 60Hz output, dual screen differential display function |
|
Audio Interface
|
1 * Horn output (2 * 18W 4R THD<10%)
1* headset output/input 1* microphone input |
|
Hardware watchdog
|
hardware watchdog support
|
|
touch screen interface
|
1 * I 2 C interface (support multi-point resistance touch, multi-point capacitance touch) Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point acoustic touch, multi-point optical touch, etc
|
|
RTC
|
Built-in real-time clock power supply battery, support timer on/off
|
|
USB
|
2*USB-2.0 HOST，1*USB2.0 OTG
|
|
Infrared reception
|
1* infrared receiver, support infrared remote control function, support remote control
power on |
|
LED
|
1 * power status LED (red), 1 * system LED (blue, flashing by default)
|
|
Pushbutton
|
1*Reset button,1*Power button,1*Upgrade button
|
|
Serial port
|
3*UART TTL
|
|
I/O port
|
4 * IO port, supporting input or output
|
|
Wergen Interface
|
1* input connector, 1* output connector
|
|
Recoumended pover adapter
|
Input: AC100-240V, 50-60HZ, output: DC12V, 5.5mm/2.1mm DC head 2A-5A (required surge voltage is less than 18V, ripple voltage is less than 100mV)
|
|
operating systems
|
Android 7.1/9.0
|
|
Audio
|
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, etc Format
|
|
Video
|
Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 1080P/2160P multi video decoding in the same video format
|
|
Pictures
|
Support JPG, BMP, PNG and other image formats browsing and support rotation/slide show zoom/picture zoom function
|
|
The system comes with application software that language support
|
APK installer, email, calculator, browser, recorder, calendar, settings, clock, video player, search, address book, gallery, download, camera, music, information Source Manager
|
|
language support
|
Multi-language
|
|
Input method
|
Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
|
|
system administration
|
The original Android system, with open root permission, can be customized for product development Real-time remote monitoring, system crash recovery, 7*24 hours unattended
Support OTA remote upgrade Support wifi display |
|
The system watchdog
|
Supporting software watchdogs
|
|
Serial number
|
Definition
|
Attributes
|
Description
|
|
1
|
12V
|
Power Supply
|
12V output
|
|
2
|
LVDS-VDD-IN
|
Power Supply
|
LVDS voltage input
|
|
3
|
5V
|
Power Supply
|
5V output
|
|
4
|
LVDS-VDD-IN
|
Power Supply
|
LVDS voltage input
|
|
5
|
3.3V
|
Power Supply
|
3.3V output
|
|
6
|
LVDS-VDD-IN
|
Power Supply
|
LVDS voltage input
|
|
Serial number
|
Definition
|
Attributes
|
Description
|
|
1
|
POWER
|
Power supply
|
Panel power output 3.3V/5V/12V
The specific voltage is selected by the jump cap, the |
|
2
|
POWER
|
Power supply
|
|
|
3
|
POWER
|
Power supply
|
|
|
4
|
GND
|
land
|
land
|
|
5
|
GND
|
land
|
land
|
|
6
|
GND
|
land
|
land
|
|
7
|
LVDS-A-D0N
|
Output
|
Data output negative
|
|
8
|
LVDS-A-D0P
|
Output
|
Data output positive
|
|
9
|
LVDS-A-D1N
|
Output
|
Data output negative
|
|
10
|
LVDS-A-D1P
|
Output
|
Data output positive
|
|
11
|
LVDS-A-D2N
|
Output
|
Data output negative
|
|
12
|
LVDS-A-D2P
|
Output
|
Data output positive
|
|
13
|
GND
|
land
|
land
|
|
14
|
GND
|
land
|
land
|
|
15
|
LVDS-A-CLKN
|
Output
|
Data output negative
|
|
16
|
LVDS-A-CLKP
|
Output
|
Data output positive
|
|
17
|
LVDS-A-D3N
|
Output
|
Data output negative
|
|
18
|
LVDS-A-D3P
|
Output
|
Data output positive
|
|
19
|
LVDS-B-D0N
|
Output
|
Data output negative
|
|
20
|
LVDS-B-D0P
|
Output
|
Data output positive
|
|
21
|
LVDS-B-D1N
|
Output
|
Data output negative
|
|
22
|
LVDS-B-D1P
|
Output
|
Data output positive
|
|
23
|
LVDS-B-D2N
|
Output
|
Data output negative
|
|
24
|
LVDS-B-D2P
|
Output
|
Data output positive
|
|
25
|
GND
|
land
|
land
|
|
26
|
GND
|
land
|
land
|
|
27
|
LVDS-B-CLKN
|
Output
|
Data output negative
|
|
28
|
LVDS-B-CLKP
|
Output
|
Data output positive
|
|
29
|
LVDS-B-D3N
|
Output
|
Data output negative
|
|
30
|
LVDS-B-D3P
|
Output
|
Data output positive
|
|
Serial number
|
Definition
|
Attributes
|
Description
|
|
1
|
LED+
|
backlit power supply
|
Backlight Positive
|
|
2
|
LED+
|
backlit power supply
|
Backlight Positive
|
|
3
|
LED+
|
backlit power supply
|
Backlight Positive
|
|
4
|
GND
|
land
|
land
|
|
5
|
LED-
|
Backlit Ground
|
Backlight negative
|
|
6
|
LED-
|
Backlit Ground
|
Backlight negative
|
|
7
|
LED-
|
Backlit Ground
|
Backlight negative
|
|
8
|
LED-
|
Backlit Ground
|
Backlight negative
|
|
9
|
GND
|
land
|
land
|
|
10
|
GND
|
land
|
land
|
|
11
|
MiPi-D2P
|
Output Data
|
output positive
|
|
12
|
MiPi-D2N
|
Output Data
|
output negative
|
|
13
|
GND
|
land
|
land
|
|
14
|
MiPi-D1P
|
Output Data
|
output positive
|
|
15
|
MiPi-D1N
|
Output Data
|
output negative
|
|
16
|
GND
|
land
|
land
|
|
17
|
MiPi-CLKP
|
Output Data
|
output positive
|
|
18
|
MiPi-CLKN
|
Output Data
|
output negative
|
|
19
|
GND
|
land
|
land
|
|
20
|
MiPi-D0P
|
Output Data
|
output positive
|
|
21
|
MiPi-D0N
|
Output Data
|
output negative
|
|
22
|
GND
|
land
|
land
|
|
23
|
MiPi-D3P
|
Output Data
|
output positive
|
|
24
|
MiPi-D3N
|
Output Data
|
output negative
|
|
25
|
GND
|
land
|
land
|
|
26
|
NC
|
NC
|
NC
|
|
27
|
RESET
|
Output
|
Reset
|
|
28
|
NC
|
NC
|
NC
|
|
29
|
VDDIO1.8V
|
Output
|
VDD1.8V
|
|
30
|
VDD3.3V
|
Output
|
VDD3.3V
|
|
31
|
VDD3.3V
|
Output
|
VDD3.3V
|
