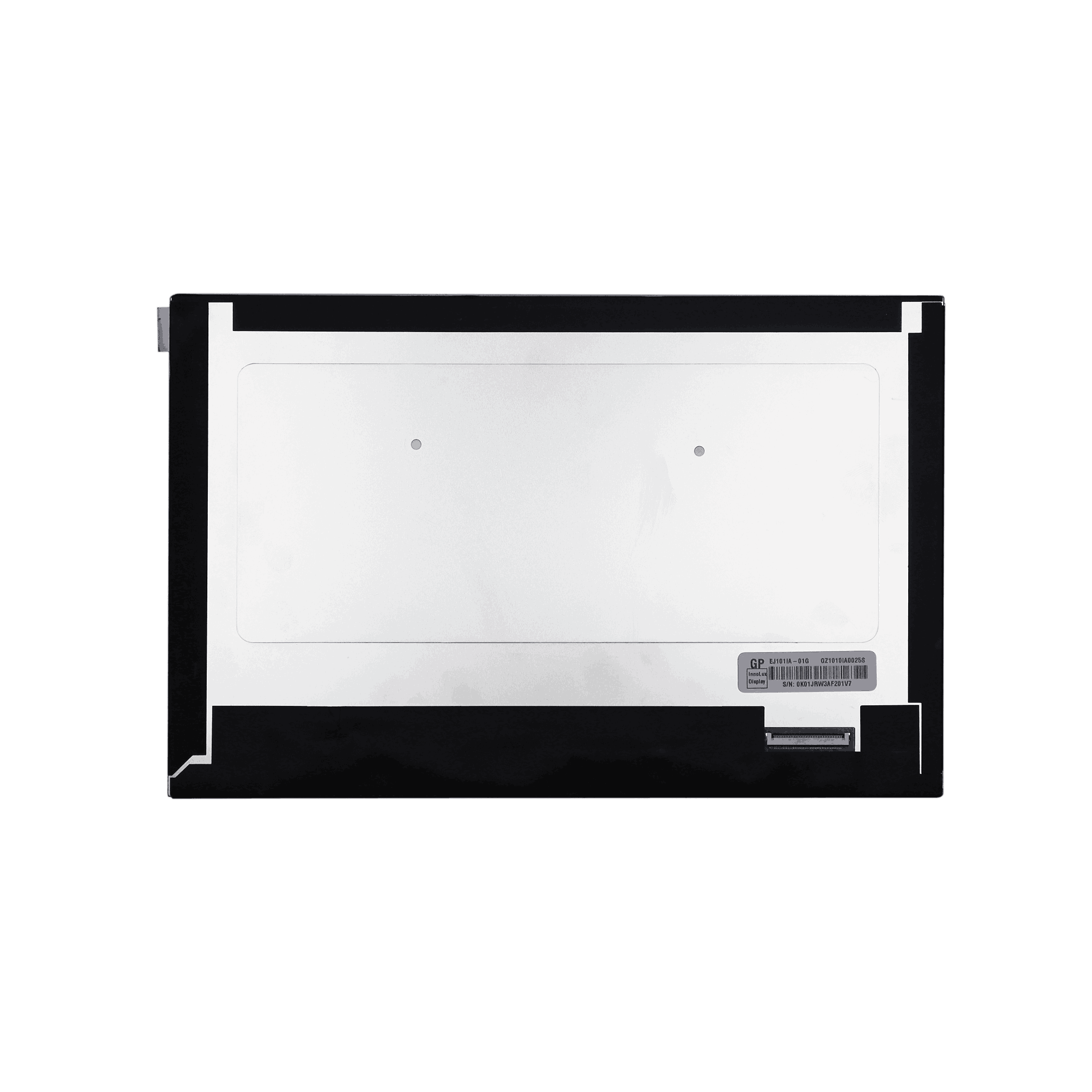

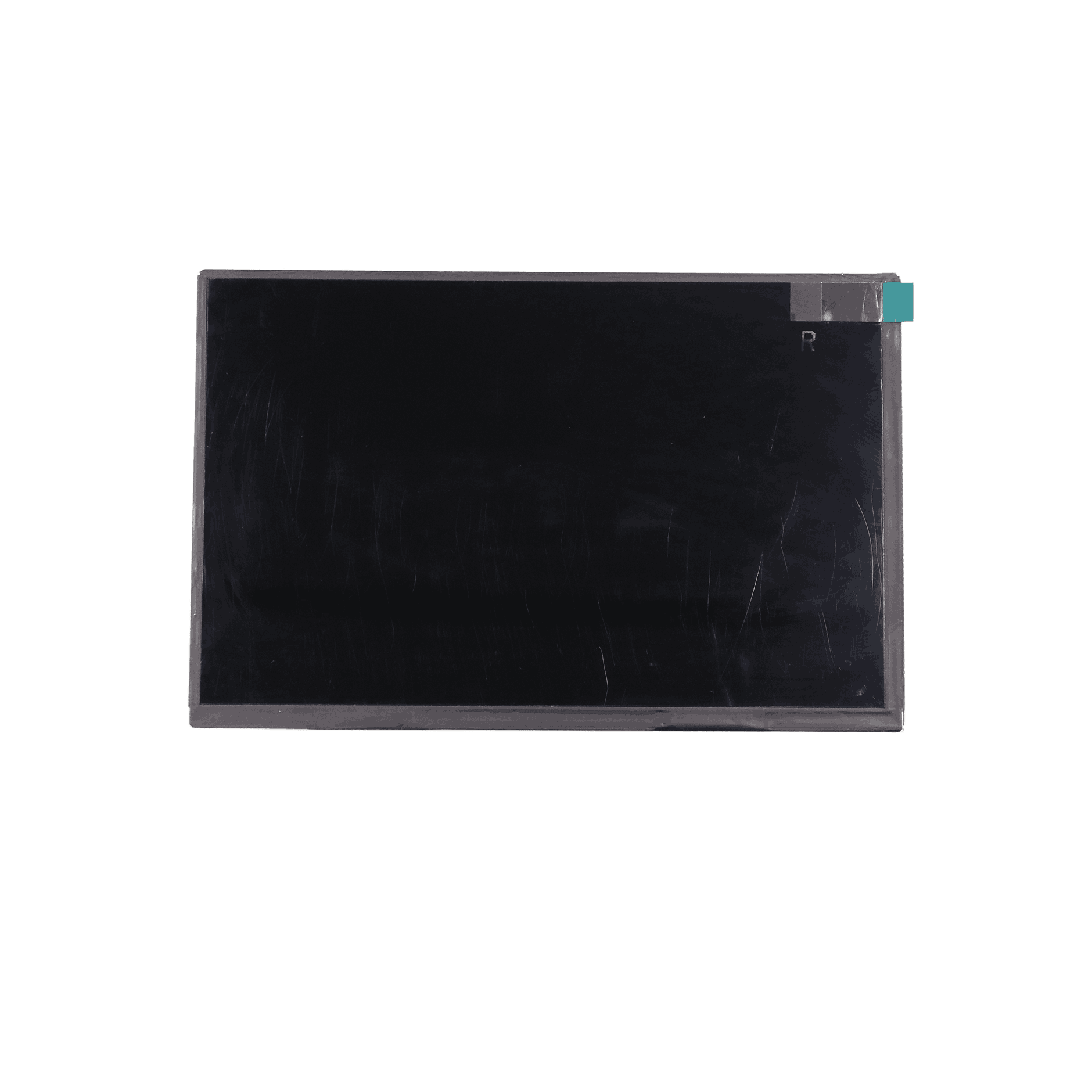

10.1 Inch Thin-Film Transistor Touch Screen Liquid Crystal Display Module
10.1 Inch Touch Screen lcd module
Model Number :
YY101IAD25WX550I2Display Size :
10.1 inch (Diagonal)Brightness :
550cd/m2Resolution :
1280*800Thickness :
2.5 MMDriver Element :
a-Si TFT active matrixWarranty :
12 MonthsManufacturer :
CloudSense OptiTech|
Pin No.
|
Symbol
|
I/O
|
Function
|
Remark
|
|
1
|
NC
|
---
|
No connection
|
|
|
2
|
VDD
|
P
|
Power Supply
|
|
|
3
|
VDD
|
P
|
Power Supply
|
|
|
4
|
NC
|
---
|
Only INX test
|
|
|
5
|
NC
|
---
|
Only INX test
|
|
|
6
|
NC
|
---
|
Only INX test
|
|
|
7
|
GND
|
P
|
Ground
|
|
|
8
|
Rxin0
|
I
|
- LVDS Differential Data Input
|
R0 R5, G0
|
|
9
|
Rxin0+
|
I
|
+ LVDS Differential Data I
|
|
|
10
|
GND
|
P
|
Ground
|
|
|
11
|
Rxin1
|
I
|
- LVDS Differential Data Input
|
G1~G5, B0,B1
|
|
12
|
Rxin1+
|
I
|
+ LVDS Differential Data Input
|
|
|
13
|
GND
|
P
|
Ground
|
|
|
14
|
Rxin2
|
I
|
- LVDS Differential Data Input
|
B2 B5,HS,VS, DE
|
|
15
|
Rxin2+
|
I
|
+ LVDS Differential Data Input
|
|
|
16
|
GND
|
P
|
G round
|
|
|
17
|
RxCLK
|
I
|
- LVDS Differential Clock Input
|
LVDS CLK
|
|
18
|
RxCLK+
|
I
|
+ LVDS Differential Clock Input
|
|
|
19
|
GND
|
P
|
Ground
|
|
|
20
|
Rxin3
|
I
|
- LVDS Differential Data Input
|
R6, R7, G6, G7, B6, B7
|
|
21
|
Rxin3+
|
I
|
+ LVDS Differential Data Input
|
|
|
22
|
GND
|
P
|
Ground
|
|
|
23
|
N
|
C
|
--- Only INX test
|
|
|
24
|
NC
|
---
|
No connection
|
|
|
25
|
GND
|
P
|
Ground
|
|
|
26
|
NC
|
---
|
No connection
|
|
|
27
|
NC
|
---
|
No connection
|
|
|
28
|
NC
|
---
|
No connection
|
|
|
29
|
AVDD
|
P
|
Power for Analog Circuit
|
|
|
30
|
GND
|
P
|
Ground
|
|
|
31
|
LED
|
P
|
LED Cathode
|
|
|
32
|
LED
|
P
|
LED Cathode
|
|
|
33
|
NC
|
---
|
Only INX test
|
|
|
34
|
NC
|
---
|
No connection
|
|
|
35
|
VGL
|
P
|
Gate OFF Voltage
|
|
|
36
|
NC
|
---
|
No connection
|
|
|
37
|
NC
|
---
|
No connection
|
|
|
38
|
VGH
|
P
|
Gate ON Voltage
|
|
|
39
|
LED+
|
P
|
LED Anode
|
|
|
40
|
LED+
|
P
|
LED Anode
|

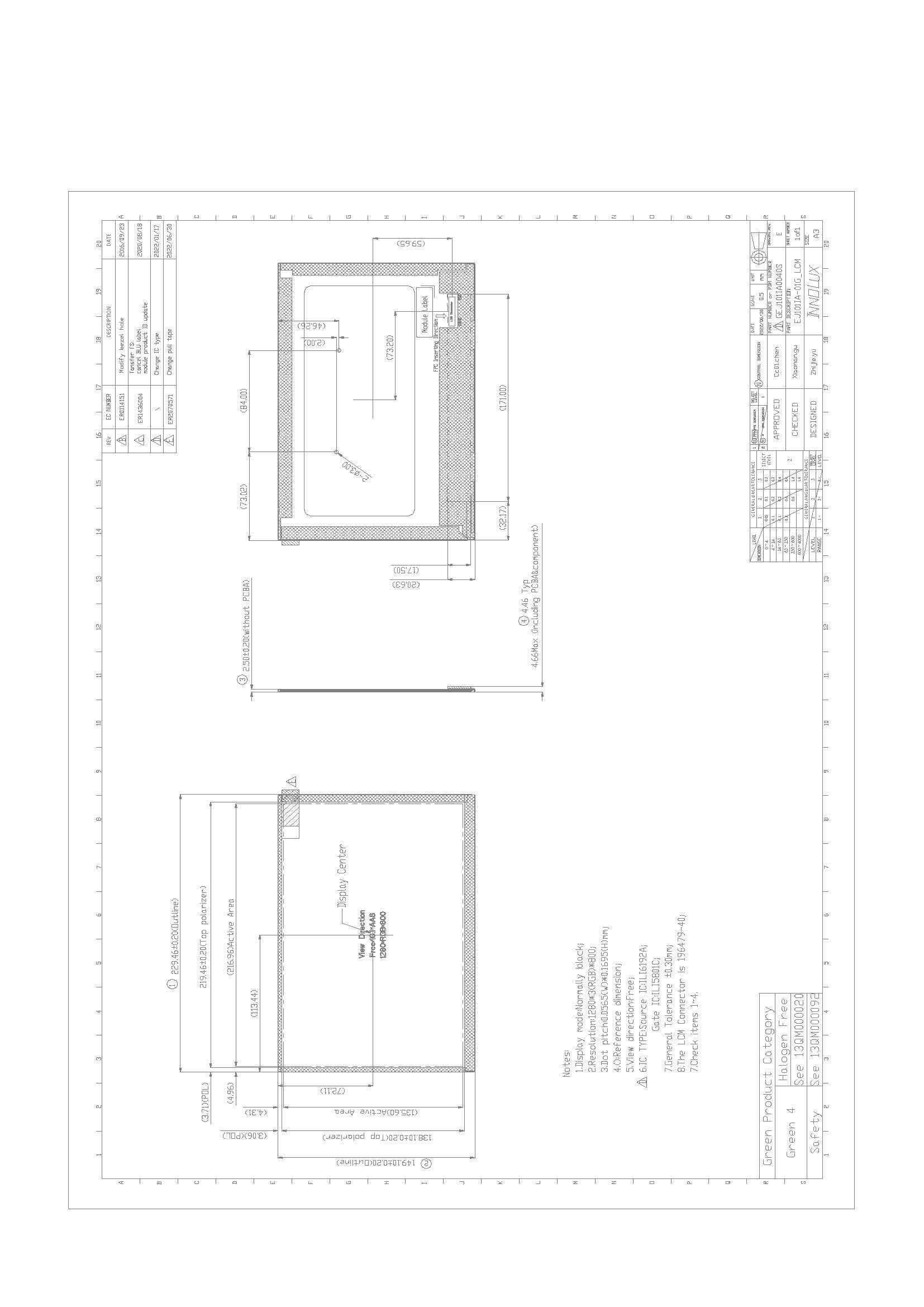

Mechanical Drawing
