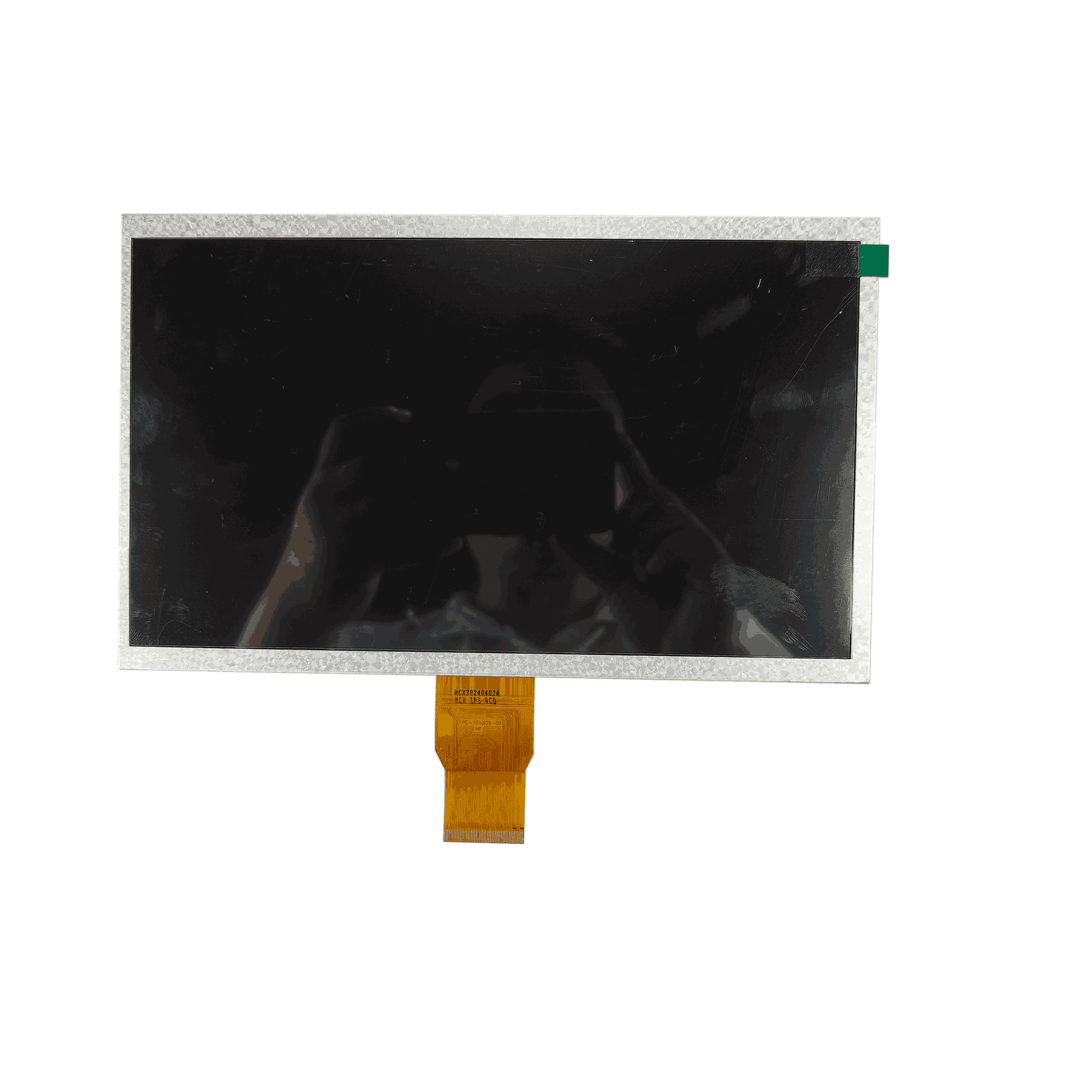

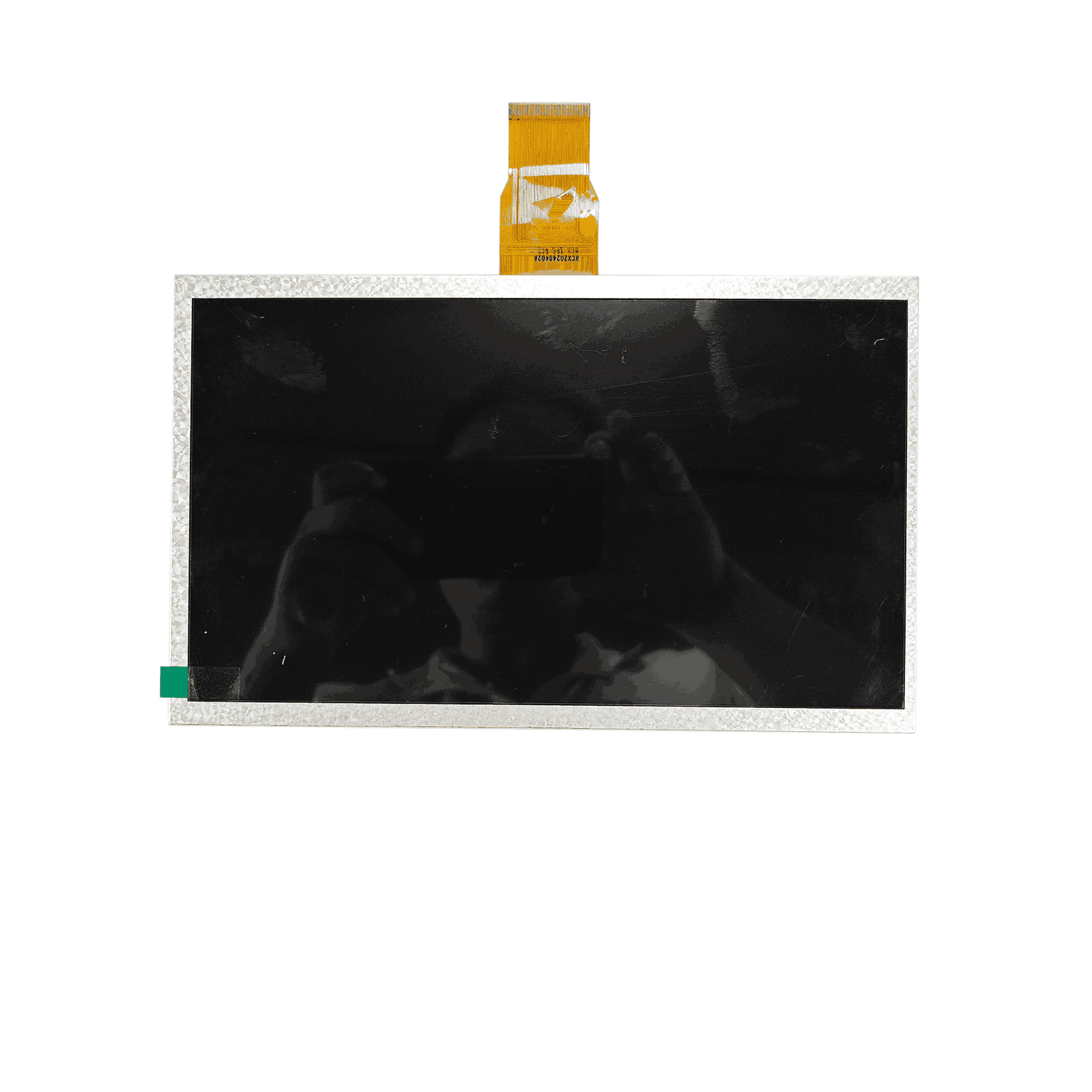

10.1 Inch Touch Screen TFT Lcd Display Panel Module
Model Number :
KNXH101BHHE501119-TNDisplay Size :
10.1 inch (Diagonal)Resolution :
1024*800Driver Element :
a-Si TFT active matrixWarranty :
12 MonthsManufacturer :
CloudSense OptiTech|
Pin No.
|
Symbol
|
I/O
|
Function
|
Remark
|
|
1-2
|
LED+
|
P
|
LED Anode
|
|
|
3-4
|
LED-
|
P
|
LED Cathode
|
|
|
5
|
GND
|
P
|
Ground
|
|
|
6
|
VCOM
|
P
|
Common voltage
|
|
|
7
|
VDD
|
P
|
Power for Digital Circuit
|
|
|
8
|
MODE
|
I
|
DE/SYNC mode select
|
|
|
9
|
DE
|
I
|
Data Input Enable
|
|
|
10
|
VSYNC
|
I
|
Vertical Sync Input
|
|
|
11
|
HSYNC
|
I
|
Horizontal Sync Input
|
|
|
12-19
|
B7-B0
|
I
|
Blue data,B7 is MSB.B0 is LSB
|
|
|
20-27
|
G7-G0
|
I
|
Green data,G7 is MSB,G0 is LSB
|
|
|
28-35
|
R7-R0
|
I
|
Red data.R7 is MSB.R0 is LSB.
|
|
|
36
|
GND
|
P
|
Ground
|
|
|
37
|
DCLK
|
I
|
Sample clock
|
|
|
38
|
GND
|
P
|
Ground
|
|
|
39
|
SHLR
|
I
|
Left/right selection
|
Note 1、2
|
|
40
|
UPDN
|
I
|
Up/down selection
|
Note 1、2
|
|
41
|
VGH
|
P
|
Gate ON Voltage
|
|
|
42
|
VGL
|
P
|
Gate OFF Voltage
|
|
|
43
|
AVDD
|
P
|
Power for Analog Circuit
|
|
|
44
|
RESET
|
I
|
Global reset pin.
|
|
|
45
|
NC
|
-
|
No connect
|
|
|
46
|
VCOM
|
P
|
Common Voltage
|
|
|
47
|
DITHB
|
I
|
Dithering function enable contro1.normally pull high.
|
|
|
48
|
GND
|
P
|
Ground
|
|
|
49-50
|
NC
|
-
|
No connection
|
|
| Quantity (pieces) | 1 - 50 | 50 - 500 | 501 - 5000 | > 5000 |
| Lead time (days) | 3 | 7 | 10 | To be negotiated |
|
Customized logo
Min. order: 500
|
Customized packaging
Min. order: 500
|
Graphic customization
Min. order: 500
|
